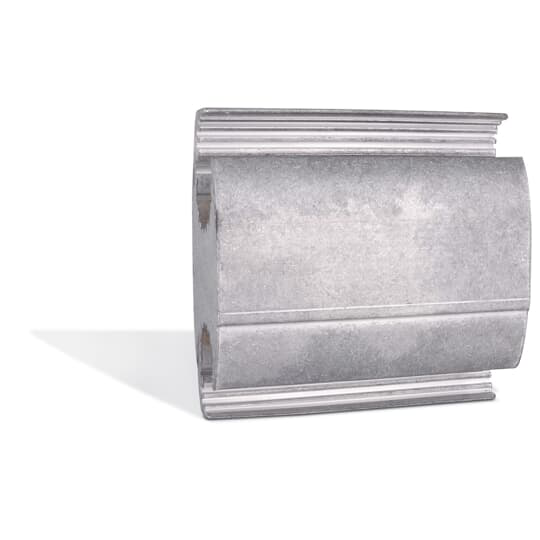

Blackburn WR949
Description
Blackburn WR949 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Application
- For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
- Brand / Label
- Blackburn
- Connection Type
- Compression
- Effective Date
- 19991027
- Insulation Material
- null
- Mounting Type
- null
- Number of Conductors
- 2
- Product Name
- COMPRESSION CONNECTOR
- Product Type
- H-Type Compression Tap Connector
- Size
- Length 4-3/4 inch
- Special Functions
- Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area.
- Standards
- RUS Accepted. Complies with ANSI C119.4 Specifications
- Temperature Range
- up to 90 °C
Classifications
- IDEA Granular Category Code (IGCC)
- 4543 >> Wire connectors
- WEEE Category
- Product Not in WEEE Scope
Ordering
- Country of Origin
- Mexico (MX)
- Selling Unit of Measure
- each
