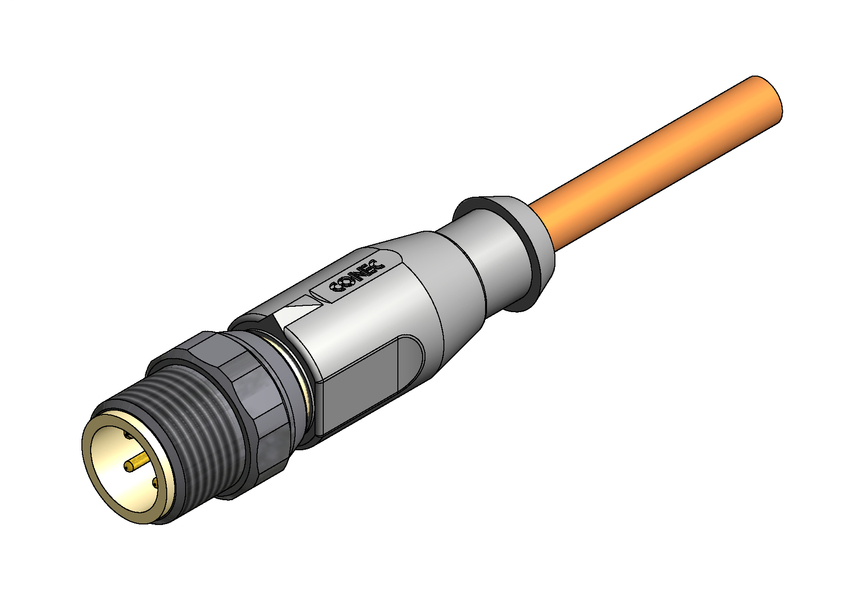

CONEC 43-10520
Description
CONEC 43-10520 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Material Data
- Coupling nut /-screw material
- Stainless Steel 1.4404
- Coupling nut /-screw plating
- Nickel
- Housing color
- Grey
- Housing material
- Thermoplastisches Elastomer
- Insulator color
- Light ivory (RAL1015)
- Insulator material
- PP GF, UL94
- Plating signal contact (mating area)
- Gold over nickel
- Signal contact material
- Copper alloy
Specifications
- Coding
- A-coded
- Configuration A-side
- axial
- Design
- single ended
- IP range A-side
- IP67
- Length cable/wire
- 2 m
- Locking type
- Screwable
- Product type
- Food & Beverage
- Size A-side
- M12x1
- Size/Number of positions
- 4- pos.
- Standard current rating
- IEC 61076-2-101
- Standard insulation resistance
- IEC 60512
- Standard IP rating
- DIN 40050-9
- Standard mating cycles
- IEC 60512-9a
- Standard pollution degree
- IEC 60664-1
- Standard rated voltage
- IEC 61076-2-101
- Standard temperature range
- IEC 60664-1
- Style
- Overmoulded Connectors
- Type A-side [ Female, Male]
- Male connector axial
Technical Data
- Cable color
- Orange
- Cable quality
- 3 D12Y
- Cable quality [e.g. PP, PVC, TPE etc.]
- PP [ Food & Beverage]
- Current rating signal
- 4 A at +40°C
- Insulation resistance
- >=100M Ohm
- IP rating
- IP69K
- Mating cycles
- >=100
- max. working temperature
- +85°C, kurzzeitig bis +105°C
- min. working temperature
- -30° C
- Pollution degree
- 3/2
- Recommended torque
- 0,6 Nm
- Sealing material
- FPM
- Shielding
- Unshielded
- Wire cross section
- 0,34 mm²
- Working voltage signal
- 250 V
