Description

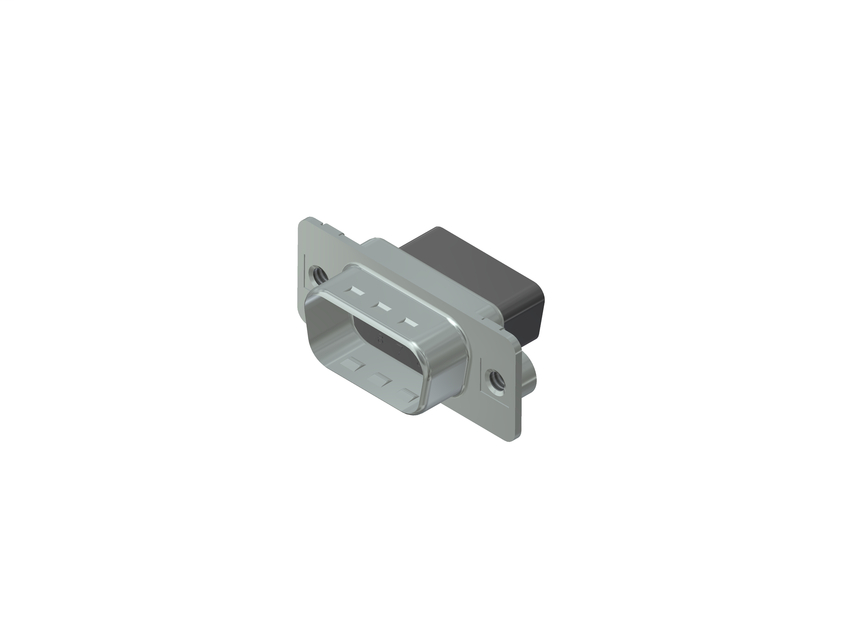

CONEC DSS1XPXXG04X is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates
- Product CSA approved
- CSA File: LR 115000-1
- Product UL approved [UL File]
- E202784
Material Data
- Insulator color
- Black
- Insulator material
- PBT GF UL 94 V-0
- Mounting option material
- Steel
- Plating mounting option
- Nickel
- Plating signal contact (mating area)
- Gold over nickel
- Plating signal contact (termination area)
- Gold over nickel
- Shell material
- Steel
- Shell plating
- Tin
- Signal contact material
- Copper alloy
Specifications
- Contact type
- Plug
- Hardware options mating side
- Threaded insert
- Hardware options termination side
- Threaded Insert
- Product type
- D-SUB
- Size/Number of positions
- 9-pos.
- Standard dielectric voltage
- IEC 60807-2
- Standard insertion / extraction force
- IEC 60807-2
- Standard mating cycles
- IEC 60807-2
- Standard working voltage
- IEC 664-1
- Termination signal [e.g. clamp, crimp, solder, SMT]
- Crimp
- Thread type
- UNC 4-40
Technical Data
- Contact resistance standard
- 10 mOhm
- Current rating signal
- 7,5 A
- Dielectric with standing voltage signal
- 1000 V
- Extraction force
- <30 N
- Insertion force
- <30 N
- IP rating
- IP 20
- Mating cycles
- 50
- max. working temperature
- +125° C
- min. working temperature
- -55° C
- Quality class
- Quality class 3
- Working voltage signal
- 125 V
